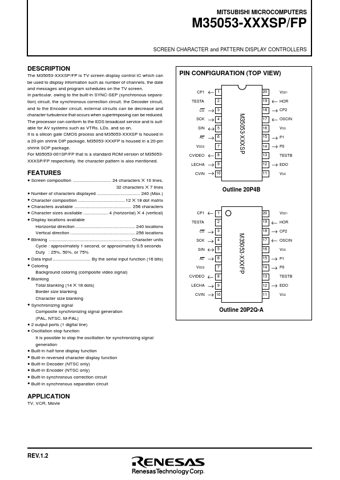

M35053-001FP SCREEN CHARACTER and PATTERN DISPLAY CONTROLLERS

The M35053-XXXSP/FP is TV screen display control IC which can be used to display information such as number of channels, the date and messages and program schedules on the TV screen. In particular, owing to the built-in SYNC-SEP (synchronous separation) circuit, the synchronous correction circuit, t.

M35053-001FP Features

* Screen composition 24 characters ✕ 10 lines, 32 characters ✕ 7 lines

* Number of characters displayed 240 (Max.)

* Character composition 12 ✕ 18 dot matrix

* Characters available 256 characters

* Character sizes available 4 (horizontal) ✕ 4 (vertical)
