M35052 - SCREEN CHARACTER and PATTERN DISPLAY CONTROLLERS

Product Overview

Mitsubishi

Datasheet Details

Part number	M35052
Manufacturer	Mitsubishi
File Size	285.37 KB
Description	SCREEN CHARACTER and PATTERN DISPLAY CONTROLLERS
Datasheet	M35052 Datasheet
Additional preview pages of the M35052 datasheet.

Product details

Description

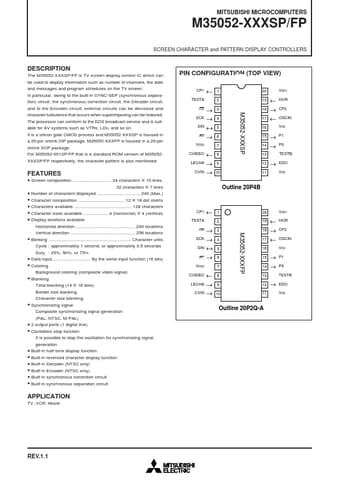

The M35052-XXXSP/FP is TV screen display control IC which can be used to display information such as number of channels, the date and messages and program schedules on the TV screen.

Features

Screen composition 24 characters ! 10 lines, 32 characters ! 7 lines.
Number of characters displayed 240 (Max. ).
Character composition 12 ! 18 dot matrix.
Characters available 128 characters.
Character sizes available 4 (horizontal) ! 4 (vertical).
Display locations available Horizontal direction 240 locations Vertical direction 256 locations.
Blinking Character units Cycle : approximately 1 second, or approximately 0.5 seco.
