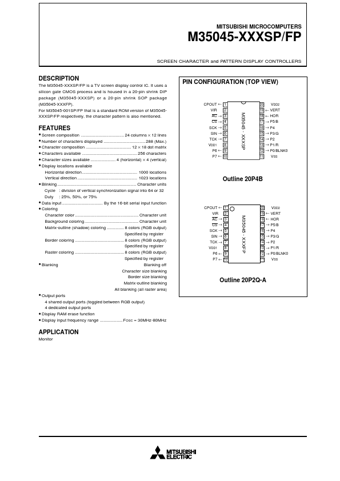

M35045 SCREEN CHARACTER and PATTERN DISPLAY CONTROLLERS by Mitsubishi - Datasheet Preview — Datasheet preview – M35045

Datasheet Details

Part number	M35045
Manufacturer	Mitsubishi
File Size	567.86 KB
Description	SCREEN CHARACTER and PATTERN DISPLAY CONTROLLERS
Datasheet	M35045 Datasheet
Additional preview pages of the M35045 datasheet.

Product details

Description

The M35045-XXXSP/FP is a TV screen display control IC.

Features

AC → 3 CS → 4 SCK → 5 SIN → 6 TCK → 7 VDD1 8 P6 ← 9 P7 ← 10 VDD2 19 ← VERT 18 ← HOR 20 17 → P5/B 16 → P4 15 → P3/G 14 → P2 13 → P1/R 12 → P0/BLNK0 11 VSS M35045 - XXXSP.
Screen composition 24 columns × 12 lines.
Number of characters displayed 288 (Max. ).
Character composition 12 × 18 dot matrix.
Characters available 256 characters.
Character sizes available 4 (horizontal) × 4 (vertical).
Display locations available.
