M35046-001SP - SCREEN CHARACTER and PATTERN DISPLAY CONTROLLERS

Product Overview

Mitsubishi

📥 Download Datasheet

M35046-001SP SCREEN CHARACTER and PATTERN DISPLAY CONTROLLERS by Mitsubishi - Datasheet Preview — Datasheet preview – M35046-001SP

Datasheet Details

Part number	M35046-001SP
Manufacturer	Mitsubishi
File Size	426.35 KB
Description	SCREEN CHARACTER and PATTERN DISPLAY CONTROLLERS
Datasheet	M35046-001SP Datasheet
Note	This datasheet PDF includes multiple part numbers: M35046-001SP, M35046. Please refer to the document for exact specifications by model.

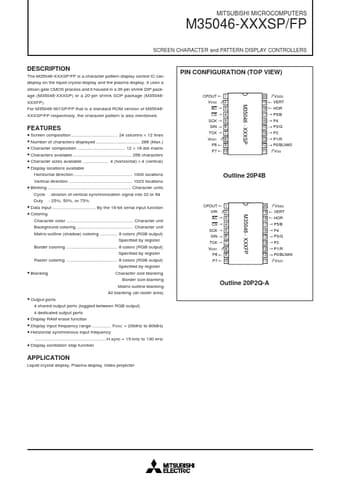

Additional preview pages of the M35046-001SP datasheet.

Product details

Description

The M35046-XXXSP/FP is a character pattern display control IC can display on the liquid crystal display and the plasma display.

Features

Screen composition 24 columns × 12 lines.
Number of characters displayed 288 (Max. ).
Character composition 12 × 18 dot matrix.
Characters available 256 characters.
Character sizes available 4 (horizontal) × 4 (vertical).
Display locations available Horizontal direction 1000 locations Vertical direction 1023 locations.
Blinking Character units Cycle : division of vertical synchronization signal into 32 or 64 Duty : 25%, 5.
