M35053-001SP - SCREEN CHARACTER and PATTERN DISPLAY CONTROLLERS

Product Overview

Renesas

Datasheet Details

Part number	M35053-001SP
Manufacturer	Renesas
File Size	439.81 KB
Description	SCREEN CHARACTER and PATTERN DISPLAY CONTROLLERS
Datasheet	M35053-001SP Datasheet
Note	This datasheet PDF includes multiple part numbers: M35053-001SP, M35053. Please refer to the document for exact specifications by model.

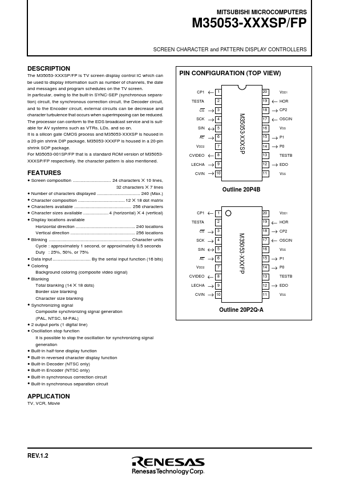

Additional preview pages of the M35053-001SP datasheet.

Product details

Description

The M35053-XXXSP/FP is TV screen display control IC which can be used to display information such as number of channels, the date and messages and program schedules on the TV screen.

Features

Screen composition 24 characters ✕ 10 lines, 32 characters ✕ 7 lines.
Number of characters displayed 240 (Max. ).
Character composition 12 ✕ 18 dot matrix.
Characters available 256 characters.
Character sizes available 4 (horizontal) ✕ 4 (vertical).
Display locations available Horizontal direction 240 locations Vertical direction 256 locations.
Blinking Character units Cycle : approximately 1 second, or approximately 0.5 seco.
