M35053

SCREEN CHARACTER and PATTERN DISPLAY CONTROLLERS

M35053 Features

* Screen composition 24 characters ✕ 10 lines, 32 characters ✕ 7 lines

* Number of characters displayed 240 (Max.)

* Character composition 12 ✕ 18 dot matrix

* Characters available 256 characters

* Character sizes available 4 (horizontal) ✕ 4 (vertical)

M35053 General Description

The M35053-XXXSP/FP is TV screen display control IC which can be used to display information such as number of channels, the date and messages and program schedules on the TV screen. In particular, owing to the built-in SYNC-SEP (synchronous separation) circuit, the synchronous correction circuit, t.

M35053 Datasheet (439.81 KB)

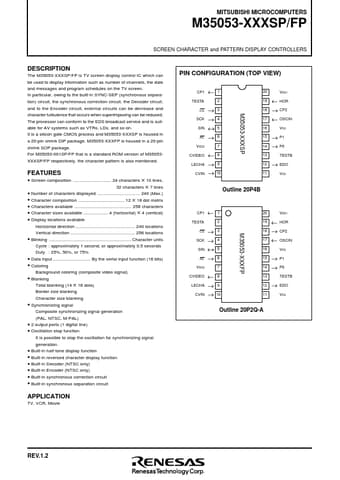

Preview of M35053 PDF
