M35075

SCREEN CHARACTER and PATTERN DISPLAY CONTROLLERS

M35075 Features

* Screen composition 24 characters ✕ 12 lines

* Number of characters displayed 288 (Max.)

* Character composition 12 ✕ 18 dot matrix

* Characters available ROM character:255 characters RAM character:8 characters

* Character sizes available 4 (vertical) ✕

M35075 General Description

The M35075-XXXFP is a character pattern display control IC can display on the CRT display the liquid crystal display and the plasma display. It uses a silicon gate CMOS process and it housed in a 24-pin shrink SOP package (M35075-XXXFP). For M35075-001FP that is a standard ROM version of M35075XXXFP.

M35075 Datasheet (332.76 KB)

Rating: 1 ★ (3 votes)

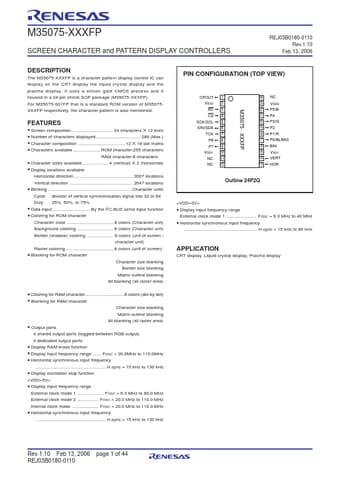

Preview of M35075 PDF

Datasheet Details

Part number:

M35075

Manufacturer:

Renesas ↗

File Size:

332.76 KB

Description:

Screen character and pattern display controllers.
