4N32 - 6-Pin DIP Optoisolators

4N32 Description

MOTOROLA SEMICONDUCTOR TECHNICAL DATA Order this document by 4N29/D 6-Pin DIP Optoisolators Darlington Output The 4N29/A, 4N30, 4N31, 4N32(1) and 4.

4N32 Applications

* requiring high collector output currents at lower input currents.
* Higher Sensitivity to Low Input Drive Current
* Meets or Exceeds All JEDEC Registered Specifications
* To order devices that are tested and marked per VDE 0884 requirements, the suffix “V” must be included at

📥 Download Datasheet

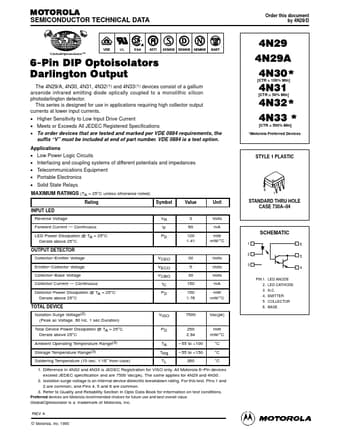

Preview of 4N32 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
4N32
Manufacturer
Motorola Inc
File Size
287.06 KB
Datasheet
4N32_MotorolaInc.pdf
Description
6-Pin DIP Optoisolators
