2N1725, 2N1724 Datasheet - Motorola

2N1725 NPN silicon power transistors

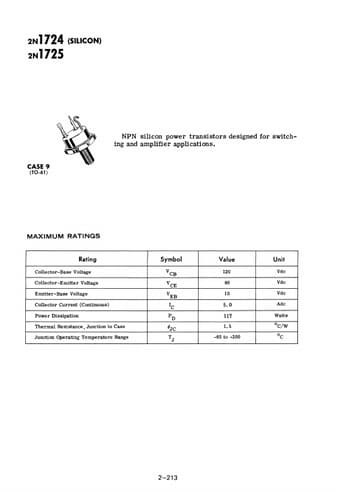

2N 1724 (SILICON) 2N1725 CASE 9 (TO-61) NPN silicon power transistors designed for switching and amplifier applications. MAXIMUM RATINGS Rating Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current (Continuous) Power Dissipation Thermal Resistance I Junction to Case Junction Operating Temperature Range Symbol VCB VCE VEB IC PD UJC TJ Value 120 80 10 5_0 117 1.5 -65 to +200 Unit Vdc Vdc Vdc Adc Watts °C/W °c 2-213 2N1724, 2N1725 (continued) ELECTRICAL CH.

2N1724-Motorola.pdf

This datasheet PDF includes multiple part numbers: 2N1725, 2N1724. Please refer to the document for exact specifications by model.
2N1725 Datasheet Preview Page 2 2N1725 Datasheet Preview Page 3

Datasheet Details

Part number:

2N1725, 2N1724

Manufacturer:

Motorola

File Size:

113.83 KB

Description:

Npn silicon power transistors.

Note:

This datasheet PDF includes multiple part numbers: 2N1725, 2N1724.
Please refer to the document for exact specifications by model.
