2N2959 Datasheet - Motorola

2N2959 SWITCHING TRANSISTORS

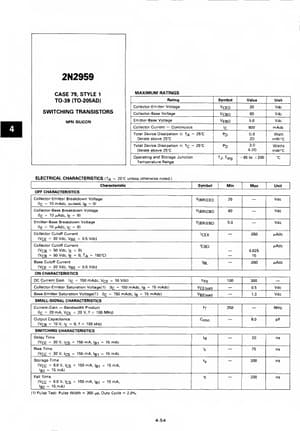

2N2959 CASE 79, STYLE 1 TO-39 (TO-205AD) SWITCHING TRANSISTORS NPN SILICON MAXIMUM RATINGS Rating Collector-Emitter Voltage Collector-Base Voltage Emitter-Base Voltage Collector Current Continuous Total Device Dissipation (5 T/ = 25°C Derate above 25°C Total Device Dissipation (a Tq = 25°C Derate above 25°C Operating and Storage Junction Temperature Range Symbol v CEO VCBO v EBO ic pd pd Tj, Tstg Value 20 60 5.0 600 0.6 20 3.0 4.00 -65 to +200 Unit Vdc Vdc Vdc mAdc Watt mW/°C Watts .

2N2959-Motorola.pdf

Preview of 2N2959 PDF

Datasheet Details

Part number:

2N2959

Manufacturer:

Motorola

File Size:

30.25 KB

Description:

Switching transistors.
