2N3784, 2N3783 Datasheet - Motorola

2N3784 PNP Transistor

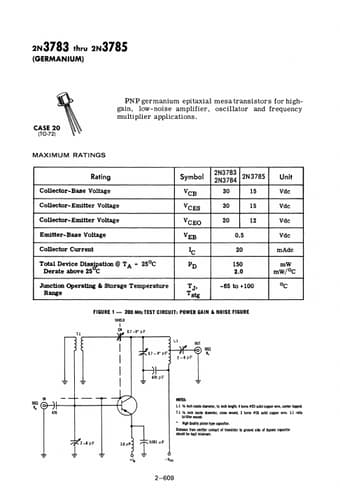

2N3783 thru 2N3785 (GERMANIUM) CASE 20 (TO-72) PNP germanium epitaxial mesa transistors for highgain, low-noise amplifier, oscillator and frequency multiplier applications. MAXIMUM RATINGS Rating Collector-Base Voltage Collector-Emitter Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Total Device Diss~atioo @ TA = 250 C Derate above 25 C Junction Operating" Storage Temperature Range Symbol VCS VCES VCEO VEB Ie PD TJ , Tstg 2N3783 2N3784 2N3785 Unit 30 15 Vde .
