MC44818 TV AND VCR PLL TUNING CIRCUIT

MC44818 Description

Order this document by MC44818/D MC44818 PLL Tuning Circuit with I2C Bus The MC44818 is a tuning circuit for TV and VCR tuner applications.It contai.

MC44818 Features

* zero it takes its required division ratio out of the latches B. Latches B are loaded from latches A by means of signal TDI which is s

MC44818 Applications

* It contains, on one chip, all the functions required for PLL control of a VCO. This integrated circuit also contains a high frequency prescaler and thus can handle frequencies up to 1.3 GHz. The MC44818 is a pin compatible drop in replacement for the MC44817, where the only difference is the MC4481

📥 Download Datasheet

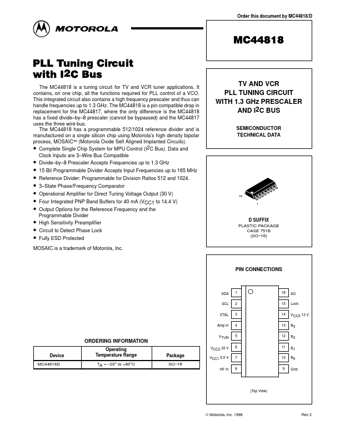

Preview of MC44818 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MC44818
Manufacturer
Motorola
File Size
158.67 KB
Datasheet
MC44818_Motorola.pdf
Description
TV AND VCR PLL TUNING CIRCUIT
