MJD44E3-1 Datasheet - Motorola

MJD44E3-1 NPN DARLINGTON SILICON POWER TRANSISTOR

MOTOROLA SEMICONDUCTOR TECHNICAL DATA Order this document by MJD44E3/D MJD44E3 Darlington Power Transistor DPAK For Surface Mount Application . . . for general purpose power and switching output or driver stages in applications such as switching regulators, converters, and power amplifiers. Lead Formed for Surface Mount Application in Plastic Sleeves (No Suffix) Straight Lead Version in Plastic Sleeves (“ 1” Su.

MJD44E3-1 Datasheet (80.96 KB)

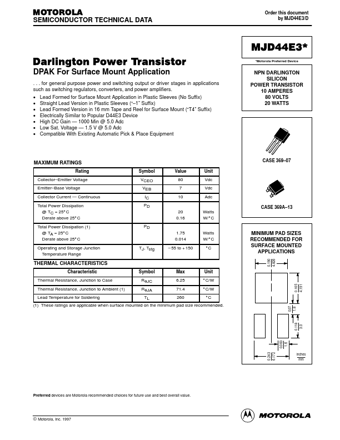

Preview of MJD44E3-1 PDF
MJD44E3-1 Datasheet Preview Page 2 MJD44E3-1 Datasheet Preview Page 3

Datasheet Details

Part number:

MJD44E3-1

Manufacturer:

Motorola

File Size:

80.96 KB

Description:

Npn darlington silicon power transistor.
