SLM80N03T - 30V N-Channel MOSFET

Datasheet Summary

Description

This Power MOSFET is produced using Msemitek‘s advanced TRENCH technology.

This advanced technology has been especially tailored to minimize conduction loss, provide superior switching performance, and withstand high energy pulse in the avalanche and commutation mode.

Features

  • - N-Channel:30V 80A RDS(on)Typ= 3.9mΩ@VGS = 10 V RDS(on))Typ= 6.8mΩ@VGS = 4.5V - Very Low On-resistance RDS(ON) - Low Crss - Fast switching - 100% avalanche tested - Improved dv/dt capability DDDD DDDD D S SS G GS SS G S Absolute Maximum Ratings TC = 25°C unless otherwise noted Symbol VDSS ID IDM VGSS EAS PD R θJC TJ, TSTG TL Parameter Drain-Source Voltage Drain Current - Continuous (TC = 25℃) - Continuous (TC = 100℃) Drain Current - Pulsed (Note 1) Gate-Source Voltage Single Pul.

📥 Download Datasheet

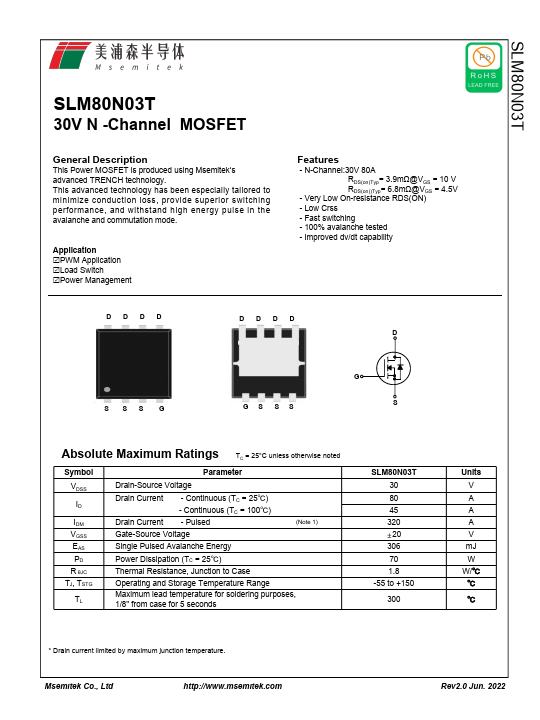

Datasheet preview – SLM80N03T

Datasheet Details

Part number SLM80N03T
Manufacturer Msemitek
File Size 1.00 MB
Description 30V N-Channel MOSFET
Datasheet download datasheet SLM80N03T Datasheet

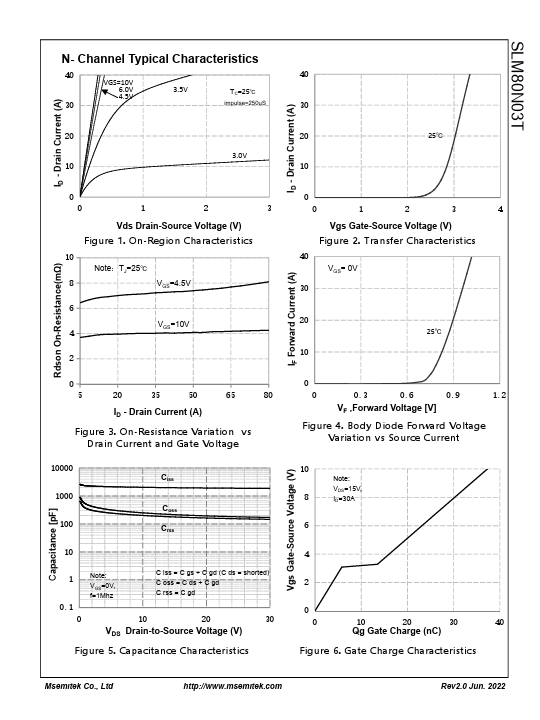

Additional preview pages of the SLM80N03T datasheet.

📁 Similar Datasheet

  • SLM8833 - 1.5A Thermoelectric Cooler Controller (Sillumin)
  • SLM8834 - 1.5A Thermoelectric Cooler Controller (Sillumin)
  • SLM8835 - 3A Thermoelectric Cooler Controller (Sillumin)
  • SLM-1251 - High Luminance Type Surface Mount LEDs (Rohm)
  • SLM-13 - Surface Mount LEDs (Rohm)
  • SLM-13xx - Molded Package Chip LEDs (Rohm)
  • SLM-20T - High Linearity Low Noise Amplifier Module (Sirenza Microdevices)
  • SLM-23 - Surface Mount LEDs (Rohm)
  • SLM-23xx - Molded Package Chip LEDs (Rohm)
  • SLM-245 - High Luminance Type Surface Mount LEDs (Rohm)
Other Datasheets by Msemitek

Full PDF Text Transcription

Click to expand full text
SLM80N03T SLM80N03T 30V N -Channel MOSFET General Description This Power MOSFET is produced using Msemitek‘s advanced TRENCH technology. This advanced technology has been especially tailored to minimize conduction loss, provide superior switching performance, and withstand high energy pulse in the avalanche and commutation mode. Application PWM Application Load Switch Power Management Features - N-Channel:30V 80A RDS(on)Typ= 3.9mΩ@VGS = 10 V RDS(on))Typ= 6.8mΩ@VGS = 4.
