SLM120N03G - 30V N-Channel MOSFET

Datasheet Summary

Description

This Power MOSFET is produced using Msemitek‘s advanced Shielding Gate MOSFET technology.

This advanced technology has been especially tailored to minimize on-state resistance, provide superior switching performance, and withstand high energy pulse in the avalanche and commutation mode.

Features

  • - N-Channel:30V 120A RDS(on)Typ= 1.2 mΩ@VGS = 10V RDS(on)Typ= 1.6 mΩ@VGS = 4.5V - Very Low On-resistance RDS(ON) - Low Crss - Fast switching - 100% avalanche tested - Improved dv/dt capability DDDD DDDD DFN5.
  • 6 S SS G G SS S D G S Absolute Maximum Ratings TC = 25°C unless otherwise noted Symbol VDSS ID IDM VGSS EAS PD R θJC TJ, TSTG TL Parameter Drain-Source Voltage Drain Current Drain Current - Continuous (TC = 25℃) - Continuous (TC = 100℃) - Pulsed (Note 1) Gate-Source Voltage.

📥 Download Datasheet

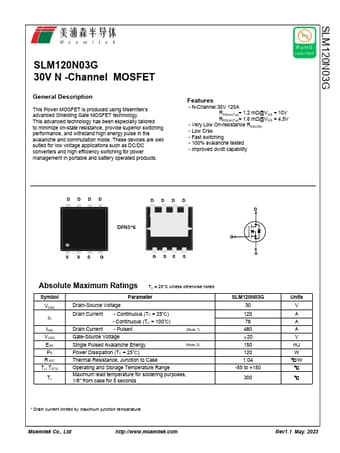

Datasheet preview – SLM120N03G

Datasheet Details

Part number SLM120N03G
Manufacturer Msemitek
File Size 946.54 KB
Description 30V N-Channel MOSFET
Datasheet download datasheet SLM120N03G Datasheet
Additional preview pages of the SLM120N03G datasheet.
