SLM1909 - Motor Driver

SLM1909 Description

Motor Driver, Forward/Reverse, Low Saturation Voltage, 28V SLM1909 GENERAL .
The SLM1909 is a 2-channel low saturation voltage forward/reverse motor driver IC.

SLM1909 Features

* DMOS output transistor adoption (upper and lower total Rdson = 0.65 Ω Typ. ).
* VCC Max = 28V, IO Max = 1.2A, IO RMS = 0.8A.
* 4V to 28V operating supply voltage range (The control system power supply is unnecessary. ).
* The compact package (SOIC-10) is adopted.
* Current consum

SLM1909 Applications

* Stage Lighting
* Refrigerator
* Flatbed Scanner, Document Scanner
* POS Printer, Label Printer
* PoE Point of Sales Terminal
* Clothes Dryer
* Vacuum Cleaner

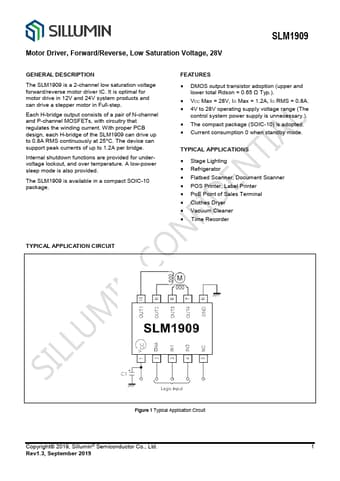

* Time Recorder TYPICAL APPLICATION CIRCUIT Figure 1 Typical Application Circuit Copyright© 2019, Sillumi
