SLP7N70S - 700V N-Channel MOSFET

Msemitek

📥 Download Datasheet

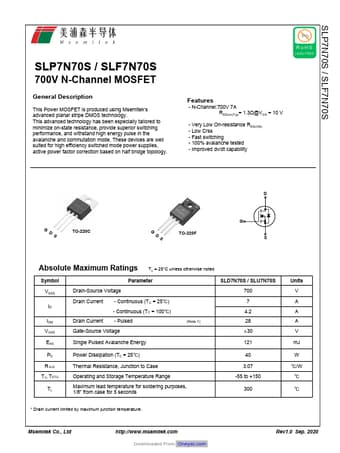

SLP7N70S Datasheet Preview — Preview of SLP7N70S PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: SLP7N70S
Manufacturer: Msemitek
File Size: 655.75 KB
Datasheet: SLP7N70S-Msemitek.pdf
Description: 700V N-Channel MOSFET

SLP7N70S Product details

Description

This Power MOSFET is produced using Msemitek‘s advanced planar stripe DMOS technology.

Features

- N-Channel:700V 7A RDS(on)Typ= 1.3Ω@VGS = 10 V - Very Low On-resistance RDS(ON) - Low Crss - Fast switching - 100% avalanche tested - Improved dv/dt capability GDS TO-220C G D S TO-220F D G S Absolute Maximum Ratings TC = 25°C unless otherwise noted Symbol Parameter SLD7N70S / SLU7N70S VDSS Drain-Source Voltage 700 Drain Current - Continuous (TC = 25℃) 7 ID - Continuous (TC = 100℃) 4.2 IDM Drain Current - Pulsed (Note 1) 28 VGSS Gate-Source Voltage ±30 EAS Single Pulse.
