2N3700 - Bipolar Transistor

2N3700 Description

Bipolar Transistor NPN .
This is a silicon NPN transistor in a TO-18 type case designed primarily for amplifier and switching applications.

2N3700 Features

* high breakdown voltage, Low leakage current, low capacity, and beta useful over an extremely wide current range. Maximum Ratings: Characteristic Collector-Base Voltage Collector-Emitter Voltage Emitter Base Voltage Continuous Collector Current Total Device Dissipation -(TA = +25°C), Derate Above 25

📥 Download Datasheet

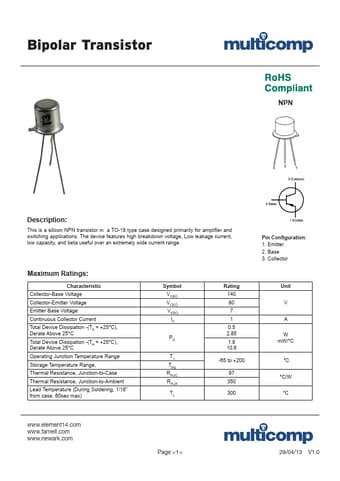

Preview of 2N3700 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2N3700
Manufacturer
Multicomp
File Size
225.65 KB
Datasheet
2N3700-Multicomp.pdf
Description
Bipolar Transistor
