MTV230M64 8051 Embedded Micro Controller

MTV230M64 Description

MTV230M64 8051 Embedded Micro Controller with Flash OSD and ISP .
The MTV230M64 micro-controller is an 8051 CPU core embedded device specially tailored to LCD Monitor applications.

MTV230M64 Features

* 8051 core, 12MHz operating frequency with double CPU clock option, 3.3V power supply. 1024-byte RAM, 64K-byte program Flash-ROM. Maximum 4 channels of 5V open

MTV230M64 Applications

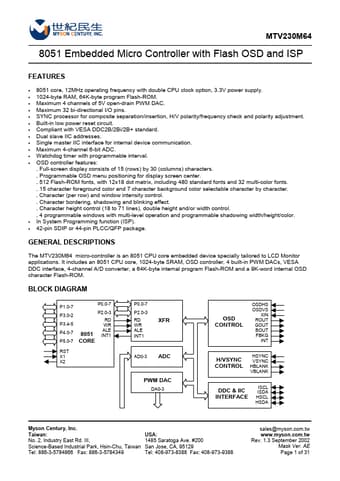

* It includes an 8051 CPU core, 1024-byte SRAM, OSD controller, 4 built-in PWM DACs, VESA DDC interface, 4-channel A/D converter, a 64K-byte internal program Flash-ROM and a 9K-word internal OSD character Flash-ROM. BLOCK DIAGRAM P1.0-7 P3.0-2 P3.4-5 P4.0-7 P5.0-7 RST X1 X2 P0.0-7 P2.0-3 RD WR ALE I

📥 Download Datasheet

Preview of MTV230M64 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MTV230M64
Manufacturer
Myson Century
File Size
404.37 KB
Datasheet
MTV230M64_MysonCentury.pdf
Description
8051 Embedded Micro Controller
