MTV212MN64 8051 Embedded Monitor Controller Flash Type with ISP

MTV212MN64 Description

MYSON TECHNOLOGY MTV212M64i (Rev 0.9) 8051 Embedded Monitor Controller Flash Type with ISP .
The MTV212M64i micro-controller is an 8051 CPU core embedded device especially tailored to Monitor applications.

MTV212MN64 Features

* 8051 core, 12MHz operating frequency. 1024-byte RAM; 64K-byte program Flash-ROM support In System Programming(ISP). Maximum 14 channels of 5V open-drain PWM DAC. Maximum

MTV212MN64 Applications

* It includes an 8051 CPU core, 1024-byte SRAM, SYNC processor, 14 built-in PWM DACs, VESA DDC interface, 4-channel A/D converter and a 64K-byte internal program Flash-ROM. BLOCK DIAGRAM P0.07 RD WR ALE INT1 P1.0-7 P2.0-2,P2.4-7 P3.2-0 P3.4-5 RST X1 X2 P0.07 RD WR ALE INT1 XFR H/VSYNC CONTROL

📥 Download Datasheet

Preview of MTV212MN64 PDF

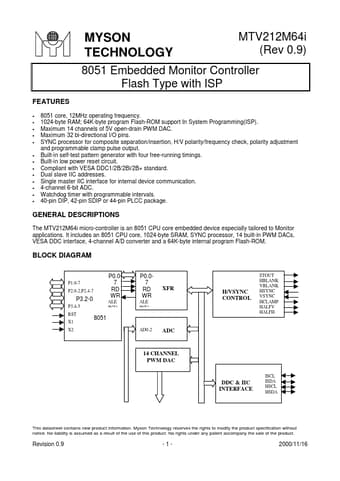

datasheet Preview Page 2 datasheet Preview Page 3
