MTV212M64 8051 Embedded Monitor Controller MTP Type

MTV212M64 Description

www.DataSheet4U.com MYSON TECHNOLOGY MTV212M64 (Rev.1.2) 8051 Embedded Monitor Controller MTP Type .
The MTV212M micro-controller is an 8051 CPU core embedded device specially tailored to Monitor applications.

MTV212M64 Features

* 8051 core, 12MHz operating frequency. 1024-byte RAM, 64K-byte program Flash-ROM.
* Maximum 14 channels of 9V open-drain PWM DAC. Maximum 32 bi

MTV212M64 Applications

* It includes an 8051 CPU core, 1024-byte SRAM, SYNC processor, 14 built-in PWM DACs, VESA DDC interface, 4-channel A/D converter, Low Speed USB Interface and a 64K-byte internal program Flash-ROM. BLOCK DIAGRAM This datasheet contains new product information. Myson Technology reserves the rights t

📥 Download Datasheet

Preview of MTV212M64 PDF

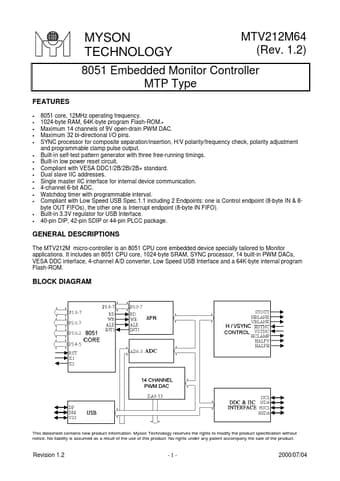

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MTV212M64
Manufacturer
Myson
File Size
225.72 KB
Datasheet
MTV212M64_Myson.pdf
Description
8051 Embedded Monitor Controller MTP Type
