MTV012E

8051 Embedded CRT Monitor Controller OTP Version

MTV012E Features

* 8051 core. 256 bytes internal RAM. 8K bytes program EPROM. 14 channels 12V open drain PWM DAC, 10 dedicated channels and 4 channels shared with I/O pin. 20 bi-direction I/O pin, 12 dedicated pin, 4 shared with DAC, 4 shared with DDC/IIC interface. 3 output pin shared with H/V sync output and self te

MTV012E General Description

The MTV012E micro-controller is an 8051 CPU core-embedded device specially tailored to CRT monitor applications. It includes an 8051 CPU core, 256-byte SRAM, 14 built-in PWM DACs, DDC1/DDC2B interface, 24Cxx series EEPROM interface and an 8K-byte internal program EPROM. BLOCK DIAGRAM STOUT P1.0-7 .

MTV012E Datasheet (104.61 KB)

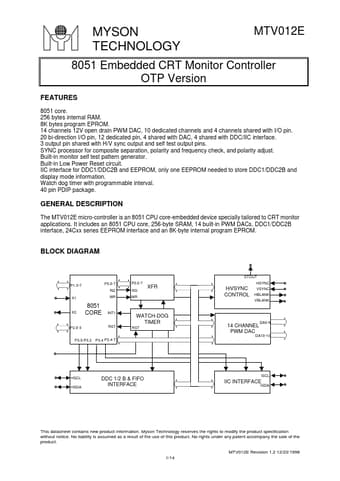

Preview of MTV012E PDF

Datasheet Details

Part number:

MTV012E

Manufacturer:

Myson

File Size:

104.61 KB

Description:

8051 embedded crt monitor controller otp version.
