MTV012A

8051 Embedded CRT Monitor Controller Mask Version

MTV012A Features

* 8051 core. 256 bytes internal RAM. 8K bytes program Mask ROM. 14 channels 10V open drain PWM DAC, 10 dedicated channels and 4 channels shared with I/O pin. 20 bi-direction I/O pin, 12 dedicated pin, 4 shared with DAC, 4 shared with DDC/IIC interface. 3 output pins shared with H/V sync output and sel

MTV012A General Description

The MTV012A micro controller is an 8051 CPU core-embedded device specially tailored to CRT monitor applications. It includes an 8051 CPU core, 256-byte SRAM, 14 built-in PWM DACs, DDC1/DDC2B interface, 24Cxx series EEPROM interface and an 8K-byte internal program ROM. BLOCK DIAGRAM STOUT P1.0-7 X1.

MTV012A Datasheet (102.97 KB)

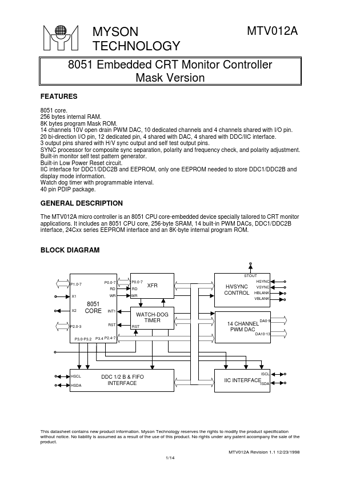

Preview of MTV012A PDF
