MTV018 - Super On-Screen-Display

Product Overview

Myson

📥 Download Datasheet

MTV018 Super On-Screen-Display by Myson - Datasheet Preview — Datasheet preview – MTV018

Datasheet Details

Part number	MTV018
Manufacturer	Myson
File Size	139.00 KB
Description	Super On-Screen-Display
Datasheet	MTV018_Myson.pdf

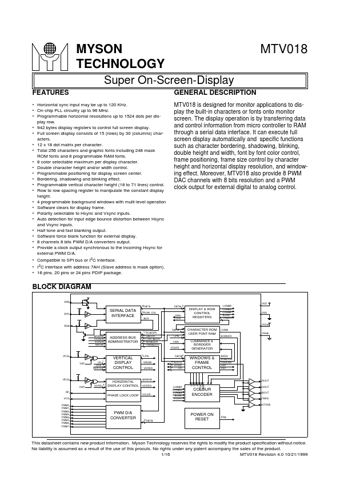

Additional preview pages of the MTV018 datasheet.

Product details

Description

MTV018 is designed for monitor applications to display the built-in characters or fonts onto monitor screen.

Features

Horizontal sync input may be up to 120 KHz.
On-chip PLL circuitry up to 96 MHz.
Programmable horizontal resolutions up to 1524 dots per display row.
942 bytes display registers to control full screen display.
Full screen display consists of 15 (rows) by 30 (columns) characters.
12 x 18 dot matrix per character.
Total 256 characters and graphic fonts including 248 mask ROM fonts and 8 programmable RAM fonts.
8 color s.
