MTV212M32 8051 Embedded Monitor Controller Flash Type

MTV212M32 Description

www.DataSheet4U.com MYSON TECHNOLOGY MTV212M32 (Rev 1.1) 8051 Embedded Monitor Controller Flash Type with ISP .
The MTV212M32 micro-controller is an 8051 CPU core embedded device specially tailored to Monitor applications.

MTV212M32 Features

* 8051 core, 12MHz operating frequency. 512-byte RAM; 32K-byte program Flash-ROM support In System Programming(ISP). Maximum 14 channels of 5V open-drain PWM DAC. Maximum

MTV212M32 Applications

* It includes an 8051 CPU core, 512-byte SRAM, SYNC processor, 14 built-in PWM DACs, VESA DDC interface, 3-channel A/D converter and a 32K-byte internal program Flash-ROM. BLOCK DIAGRAM P0.07 RD WR ALE INT1 P1.0-7 P2.0-2,P2.4-7 P3.2-0 P3.4-5 RST X1 X2 P0.07 RD WR ALE INT1 XFR H/VSYNC CONTROL S

📥 Download Datasheet

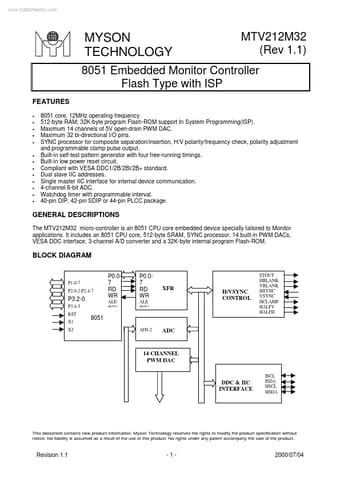

Preview of MTV212M32 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MTV212M32
Manufacturer
Myson
File Size
214.77 KB
Datasheet
MTV212M32_Myson.pdf
Description
8051 Embedded Monitor Controller Flash Type
