NCE4618SP

N-Channel Enhancement Mode Power MOSFET

NCE4618SP Features

* VSSS =20V,IS =6A

* 2.5V drive

* Common-drain type

* 2KV HBM Package Information

* Minimum Packing Quantity : 5,000 pcs./reel Application

* Lithium-ion battery charging and discharging switch Equivalent Circuit Marking and pin assignment CSP top view Absolute Maximum Rat

NCE4618SP General Description

The NCE4618SP uses advanced trench technology to provide excellent RSS(ON), low gate charge and operation with gate voltages as low as 2.5V while retaining a 12V VGS(MAX) rating. It is ESD protected. This device is suitable for use as a unidirectional or bi-directional load switch, facilitated by it.

NCE4618SP Datasheet (293.61 KB)

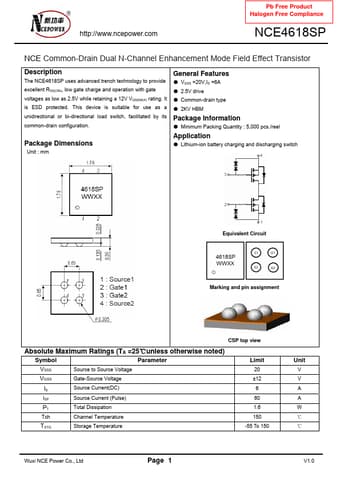

Preview of NCE4618SP PDF

Datasheet Details

Part number:

NCE4618SP

Manufacturer:

NCE Power Semiconductor

File Size:

293.61 KB

Description:

N-channel enhancement mode power mosfet.
http://www.ncepower.com Pb Free Product Halogen Free Compliance NCE4618SP NCE Common-Drain Dual N-Channel Enhancement Mode Field Effect Transistor .
