NCE60P10K - P-Channel Enhancement Mode Power MOSFET

NCE Power Semiconductor

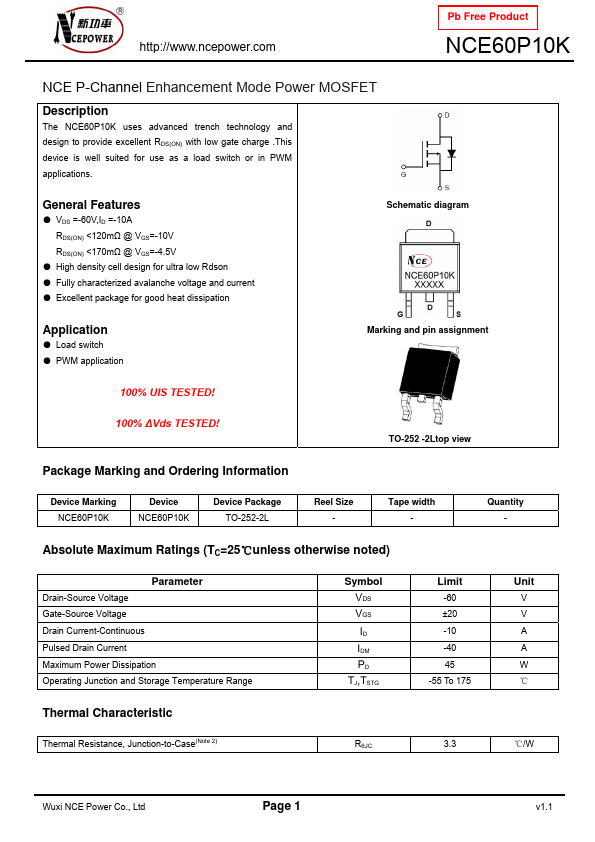

NCE60P10K Datasheet Preview — Preview of NCE60P10K PDF

Datasheet Details

Part number	NCE60P10K
Manufacturer	NCE Power Semiconductor
File Size	420.22 KB
Description	P-Channel Enhancement Mode Power MOSFET
Datasheet	NCE60P10K-NCEPowerSemiconductor.pdf

NCE60P10K Product details

Description

The NCE60P10K uses advanced trench technology and design to provide excellent RDS(ON) with low gate charge .This device is well suited for use as a load switch or in PWM applications.

Features

VDS =-60V,ID =-10A RDS(ON).
