NCEP1505S

N-Channel Super Trench Power MOSFET

NCEP1505S Features

* VDS =150V,ID =5.1A RDS(ON) < 65mΩ @ VGS=10V ( Typ: 55mΩ)

* Excellent gate charge x RDS(on) product (FOM) Only

* Very low on-resistance RDS(on)

* 150 °C operating temperature Application UseMarking and pin assignment

* DC/DC converters and Off-Line UPS s

* High Voltage S

NCEP1505S General Description

The NCEP1505S uses Super Trench technology that is uniquely optimized to provide the most efficient high frequency switching performance. Both conduction and switching power losses are minimized due to an extremely low combination of RDS(ON) and Qg. This device is ideal for high-frequency switching .

NCEP1505S Datasheet (358.37 KB)

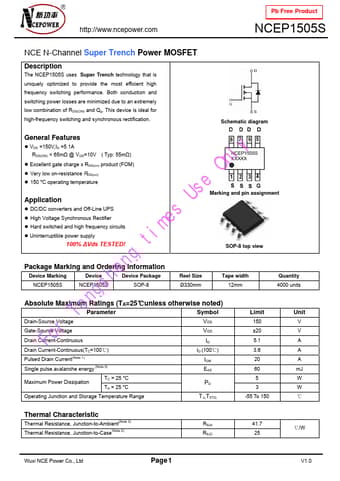

Preview of NCEP1505S PDF

Datasheet Details

Part number:

NCEP1505S

Manufacturer:

NCE Power Semiconductor

File Size:

358.37 KB

Description:

N-channel super trench power mosfet.
