NCEP1520K

N-Channel Super Trench Power MOSFET

NCEP1520K Features

* VDS =150V,ID =20A RDS(ON)=59mΩ (typical) @ VGS=10V

* Excellent gate charge x RDS(on) product(FOM)

* Very low on-resistance RDS(on)

* 175 °C operating temperature

* Pb-free lead plating

* 100% UIS tested Application

* LED backlighting

* Ideal for high-frequency switc

NCEP1520K General Description

The NCEP1520K uses Super Trench technology that is uniquely optimized to provide the most efficient high frequency switching performance. Both conduction and switching power losses are minimized due to an extremely low combination of RDS(ON) and Qg. This device is ideal for high-frequency switching .

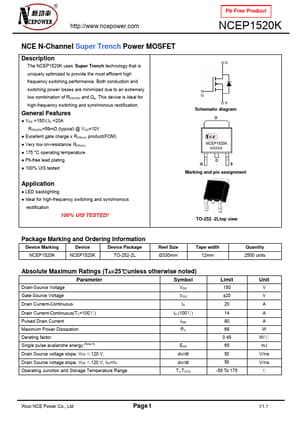

NCEP1520K Datasheet (387.29 KB)

Preview of NCEP1520K PDF

Datasheet Details

Part number:

NCEP1520K

Manufacturer:

NCE Power Semiconductor

File Size:

387.29 KB

Description:

N-channel super trench power mosfet.
