2SB1658 Silicon PNP Transistor

DATA SHEET SILICON TRANSISTOR 2SB1658 AUDIO FREQUENCY AMPLIFIER, SWITCHING PNP SILICON EPITAXIAL TRANSISTORS .

2SB1658_NEC.pdf

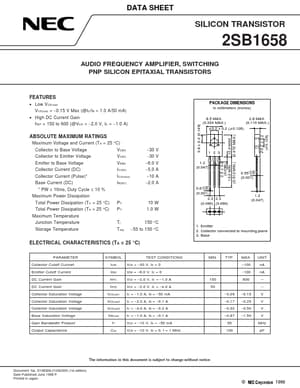

2SB1658 Datasheet Preview — Preview of 2SB1658 PDF

Datasheet Details

Part number:

2SB1658

Manufacturer:

NEC

File Size:

47.36 KB

Description:

Silicon PNP Transistor

Features

* Low VCE(sat) VCE(sat) =
* 0.15 V Max (@lC/lB = 1.0 A/50 mA) 3.8 ± 0.2 (0.149) PACKAGE DIMENSIONS in millimeters (inches) 8.5 MAX. 2.8 MAX. (0.334 MAX. ) (0.110 MAX. ) φ 3.2 ± 0.2 ( φ 0.126) 12.0 MAX. (0.472 MAX. )
* High DC Current Gain hEF = 150 to 600 (@VCE =
* 2.0 V

Applications

* of a device depend on its quality grade, as indicated below. Customers must check the quality grade of each device before using it in a particular application. Standard: Computers, office equipment, communications equipment, test and measurement equipment, audio and visual equipment, home electronic
