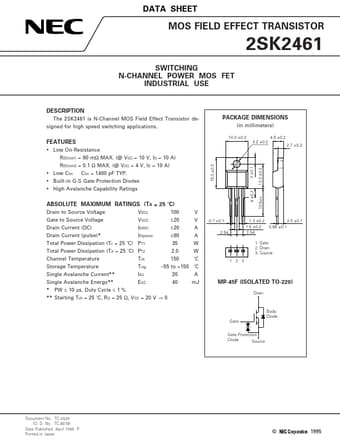

Part number:
2SK2461
Manufacturer:
NEC
File Size:
114.99 KB
Description:
N-channel mosfet.
* Low On-Resistance RDS(on)1 = 80 mΩ MAX. (@ VGS = 10 V, ID = 10 A) 15.0 ±0.3 3 ±0.1 4 ±0.2 12.0 ±0.2 13.5MIN. RDS(on)2 = 0.1 Ω MAX. (@ VGS = 4 V, ID = 10 A)
* Low Ciss Ciss = 1400 pF TYP.
* Built-in G-S Gate Protection Diodes
* High Avalanche Capability Ratings AB
2SK2461
NEC
114.99 KB
N-channel mosfet.
