NDL7603P - 1 550 nm OPTICAL FIBER COMMUNICATIONS InGaAsP STRAINED MQW DFB DC-PBH LASER DIODE MODULE

Datasheet Summary

Description

The NDL7603P Series is a 1 310 nm phase-shifted DFB (Distributed Feed-Back) laser diode module with single mode fiber.

40 to +85 °C.

Features

  • Peak emission wavelength.
  • Optical output power.
  • Wide operating temperature range.
  • λ/4-phase-shifted DFB.
  • Side Mode Suppression Ratio.
  • InGaAs monitor PIN-PD SMSR = 35 dB MIN. λp = 1 310 nm Pf = 2.0 mW TC =.
  • 40 to +85 °C.

📥 Download Datasheet

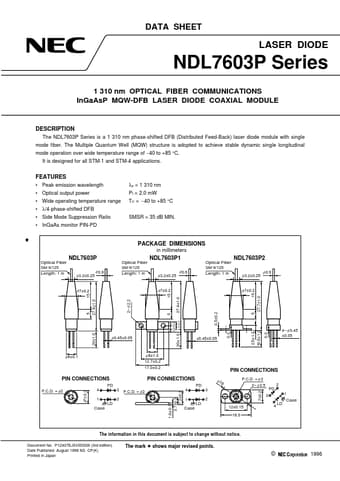

Datasheet preview – NDL7603P

Datasheet Details

Part number NDL7603P
Manufacturer NEC
File Size 74.74 KB
Description 1 550 nm OPTICAL FIBER COMMUNICATIONS InGaAsP STRAINED MQW DFB DC-PBH LASER DIODE MODULE
Datasheet download datasheet NDL7603P Datasheet
Additional preview pages of the NDL7603P datasheet.
