NDL7605P - 1 310 nm OPTICAL CATV RETURN PATH APPLICATIONS InGaAsP MQW DFB LASER DIODE MODULE WITH ISOLATOR

Datasheet Summary

Description

The NDL7605P Series is a 1 310 nm uncooled isolated coaxial DFB laser diode.

It is especially designed for optical CATV return path applications.

Features

  • Low distortion IMD2 =.
  • 50 dBc MAX. @ TC = 25 °C.
  • 1.
  • 1.
  • 1 IMD2 =.
  • 45 dBc MAX. @ TC =.
  • 40 to +85 °C IMD3 =.
  • 60 dBc MAX. @ TC =.
  • 40 to +85 °C.
  • Output power.
  • Long wavelength Pf = 2.0 mW λ p = 1 310 nm.
  • Internal InGaAs monitor PD and isolator.
  • Single mode fiber pigtail with FC-UPC, SC-UPC or SC-APC connector.
  • Wide operating temperature range TC =.
  • 40 to +85 °C.
  • 1 2-ch, Optical los.

📥 Download Datasheet

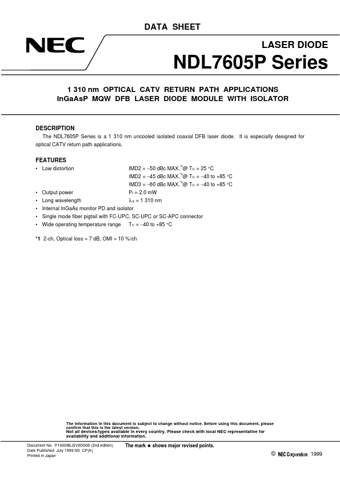

Datasheet preview – NDL7605P

Datasheet Details

Part number NDL7605P
Manufacturer NEC
File Size 76.68 KB
Description 1 310 nm OPTICAL CATV RETURN PATH APPLICATIONS InGaAsP MQW DFB LASER DIODE MODULE WITH ISOLATOR
Datasheet download datasheet NDL7605P Datasheet
Additional preview pages of the NDL7605P datasheet.
