NDL7620P - 1 310 nm OPTICAL FIBER COMMUNICATIONS InGaAsP STRAINED MQW-DFB LASER DIODE COAXIAL MODULE FOR 2.5 Gb/s

Datasheet Summary

Description

The NDL7620P Series is a 1 310 nm λ/4-phase-shifted DFB (Distributed Feed-Back) laser diode coaxial module with internal optical isolator.

Features

  • High-speed response.
  • Peak emission wavelength.
  • Wide operating temperature range.
  • Internal optical isolator.
  • λ/4-phase-shifted DFB.
  • InGaAs monitor PIN-PD tr = 40 ps, tf = 100 ps λp = 1 310 nm TC = 0 to +70 °C.

📥 Download Datasheet

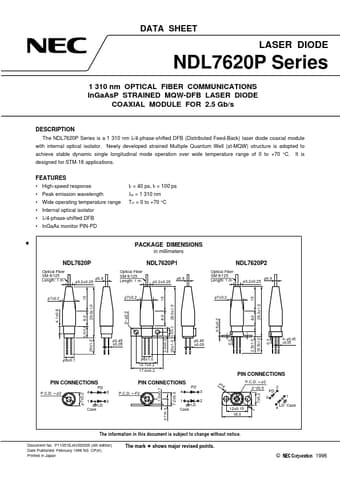

Datasheet preview – NDL7620P

Datasheet Details

Part number NDL7620P
Manufacturer NEC
File Size 71.74 KB
Description 1 310 nm OPTICAL FIBER COMMUNICATIONS InGaAsP STRAINED MQW-DFB LASER DIODE COAXIAL MODULE FOR 2.5 Gb/s
Datasheet download datasheet NDL7620P Datasheet
Additional preview pages of the NDL7620P datasheet.

📁 Similar Datasheet

  • NDL7670P - Laser Diode (NEC Electronics)
  • NDL7672P - Laser Diode (NEC Electronics)
  • NDL7673P - Laser Diode (NEC Electronics)
  • NDL0505SC - Isolated 2W Wide Input Single Output DC/DC Converters (Murata)
  • NDL0509SC - Isolated 2W Wide Input Single Output DC/DC Converters (Murata)
  • NDL0512SC - Isolated 2W Wide Input Single Output DC/DC Converters (Murata)
  • NDL0515SC - Isolated 2W Wide Input Single Output DC/DC Converters (Murata)
  • NDL1205SC - Isolated 2W Wide Input Single Output DC/DC Converters (Murata)
  • NDL1209SC - Isolated 2W Wide Input Single Output DC/DC Converters (Murata)
  • NDL1212SC - Isolated 2W Wide Input Single Output DC/DC Converters (Murata)
Other Datasheets by NEC
  • NDL7603P - 1 550 nm OPTICAL FIBER COMMUNICATIONS InGaAsP STRAINED MQW DFB DC-PBH LASER DIODE MODULE
  • NDL7605P - 1 310 nm OPTICAL CATV RETURN PATH APPLICATIONS InGaAsP MQW DFB LASER DIODE MODULE WITH ISOLATOR
  • NDL7401P - 1 310 nm InGaAsP STRAINED MQW DC-PBH LASER DIODE COAXIAL MODULE WITH SINGLE MODE FIBER
  • NDL7408P - 1 310 nm InGaAsP STRAINED MQW DC-PBH LASER DIODE COAXIAL MODULE WITH SINGLE MODE FIBER
  • NDL7502P - InGaAsP STRAINED MQW DC-PBH PULSED LASER DIODE MODULE 1310nm OTDR APPLICATION
  • NDL7503P - InGaAsP MQW DC-PBH PULSED LASER DIODE MODULE 1 310 nm OTDR APPLICATION
  • NDL7510P - InGaAsP MQW DC-PBH PULSED LASER DIODE MODULE 1 310 nm OTDR APPLICATION
  • NDL7512P - InGaAsP MQW DC-PBH PULSED LASER DIODE MODULE 1 310 nm OTDR APPLICATION

Full PDF Text Transcription

Click to expand full text
DATA SHEET LASER DIODE NDL7620P Series 1 310 nm OPTICAL FIBER COMMUNICATIONS InGaAsP STRAINED MQW-DFB LASER DIODE COAXIAL MODULE FOR 2.5 Gb/s DESCRIPTION The NDL7620P Series is a 1 310 nm λ/4-phase-shifted DFB (Distributed Feed-Back) laser diode coaxial module with internal optical isolator. Newly developed strained Multiple Quantum Well (st-MQW) structure is adopted to achieve stable dynamic single longitudinal mode operation over wide temperature range of 0 to +70 °C. designed for STM-16 applications.
