NE85600, NE8 NECs NPN SILICON HIGH FREQUENCY TRANSISTOR

NE85600 Description

NEC's NPN SILICON HIGH FREQUENCY TRANSISTOR .
E n ot T t n O r .

NE85600 Features

* HIGH GAIN BANDWIDTH PRODUCT: fT = 7 GHz E NE856 SERIES
* LOW NOISE FIGURE: 1.1 dB at 1 GHz
* HIGH COLLECTOR CURRENT: 100 mA
* HIGH RELIABILITY METALLIZATION
* LOW COST 00 (CHIP) VCC = 10 V, IC 7 mA MSG 4.0 3.5 3.0 2.5 NFMIN 2.0 1.5 1.0 0.4 0.5 1.0 2 3 4

NE85600 Applications

* Low noise figures, high gain, and high current capability equate to wide dynamic range and excellent linearity. The NE856 series offers excellent performance and reliability at low cost. This is achieved by NEC's titanium/platinum/gold metallization system and their direct nitride passivated base s

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: NE85600, NE8. Please refer to the document for exact specifications by model.

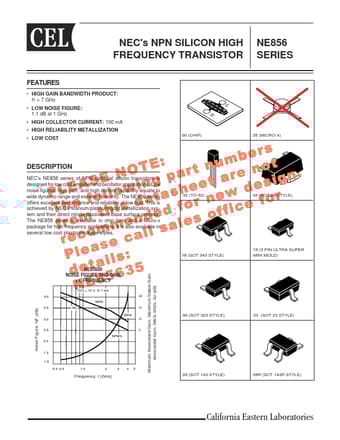

datasheet Preview Page 2 datasheet Preview Page 3
