DATA SHEET PHOTOCOUPLER PS2502-1,-2,-4, PS2502L-1,-2,-4 HIGH ISOLATION VOLTAGE DARLINGTON TRANSISTOR TYPE MULTI PHOTOCOUPLER SERIES *NEPOC T.
The PS2502-1, -2, -4 and PS2502L-1, -2, -4 are optically coupled isolators containing a GaAs light emitting diode and an NPN silicon darlington connec.

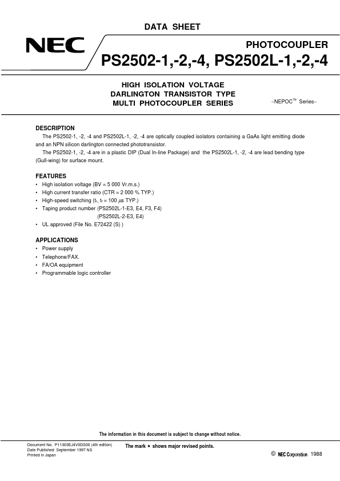

datasheet Preview Page 1 from Datasheet4u.com

PS2502L-4_NEC.pdf

PS2502L-4 Datasheet Preview — Preview of PS2502L-4 PDF

Datasheet Details

Part number:

PS2502L-4

Manufacturer:

NEC

File Size:

101.47 KB

Description:

Photocoupler

Features

* High isolation voltage (BV = 5 000 Vr. m. s. )
* High current transfer ratio (CTR = 2 000 % TYP. )
* High-speed switching (tr, tf = 100 µs TYP. )
* Taping product number (PS2502L-1-E3, E4, F3, F4) (PS2502L-2-E3, E4)
* UL approved (File No. E72422 (S) ) APPLICATI

Applications

* Power supply
* Telephone/FAX.
* FA/OA equipment
* Programmable logic controller The information in this document is subject to change without notice. Document No. P11303EJ4V0DS00 (4th edition) Date Published September 1997 NS Printed in Japan The mark shows maj
