NCSA119BT-V1 Datasheet - NICHIA

NCSA119BT-V1 - AMBER LED

Package Materials Pre-coating Materials Lens Materials Electrodes Materials Weight Ceramics () Silicone Resin (with phosphor) Silicone Resin Au-plated 0.032g (TYP) 3.2 K A Protection Device 4 SOLDERING NICHIA STS-DA1-3860D * Recommended Reflow Soldering Co

NICHIA STS-DA1-3860D NICHIA CORPORATION SPECIFICATIONS FOR AMBER LED NCSA119BT-V1 Pb-free Reflow Soldering Application Built-in ESD Protection Device RoHS Compliant SPECIFICATIONS NICHIA STS-DA1-3860D (1) Absolute Maximum Ratings Item Symbol Absolute Maximum Rating Forward Current IF 1500 Pulse Forward Current IFP 2000 Allowable Reverse Current IR 85 Power Dissipation PD 4.95 Operating Temperature Topr -40~100 Storage Temper

NCSA119BT-V1-NICHIA.pdf

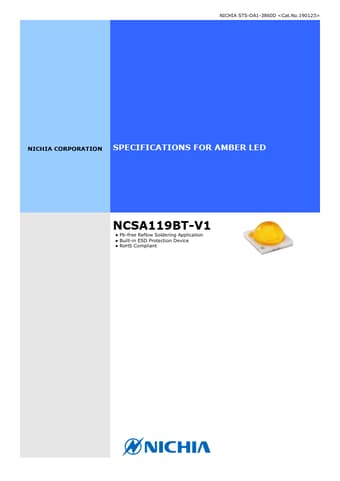

Preview of NCSA119BT-V1 PDF
NCSA119BT-V1 Datasheet Preview Page 2 NCSA119BT-V1 Datasheet Preview Page 3

Datasheet Details

Part number:

NCSA119BT-V1

Manufacturer:

NICHIA

File Size:

343.17 KB

Description:

Amber led.
