NCSAE17AT Datasheet - NICHIA

NCSAE17AT AMBER LED

Silicone Resin （+） Silicone Resin (with diffuser and phosphor) Au-plated 0.0026g(TYP) K A 4 SOLDERING * Reflow Soldering Condition(Lead-free Solder) 1 to 5°C per sec Pre-heat 180 to 200°C 60sec Max Above 220°C 120sec Max 260°CMax 10sec Max * Recommended Soldering Pad Pattern 1..

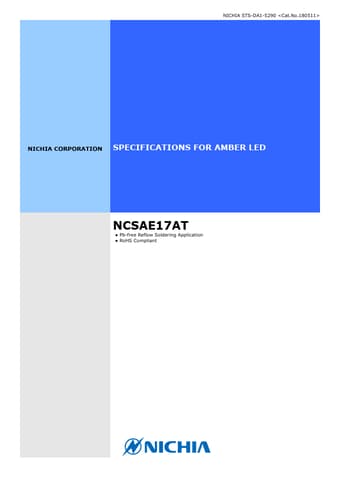

NICHIA STS-DA1-5290 NICHIA CORPORATION SPECIFICATIONS FOR AMBER LED NCSAE17AT Pb-free Reflow Soldering Application RoHS Compliant SPECIFICATIONS NICHIA STS-DA1-5290 (1) Absolute Maximum Ratings Item Symbol Absolute Maximum Rating Forward Current IF 700 Pulse Forward Current IFP 1000 Reverse Voltage VR 5 Power Dissipation PD 2.31 Operating Temperature Topr -40~100 Storage Temperature Tstg -40~100 Junction Temperature TJ 135 <.

NCSAE17AT Datasheet (341.09 KB)

Preview of NCSAE17AT PDF
NCSAE17AT Datasheet Preview Page 2 NCSAE17AT Datasheet Preview Page 3

Datasheet Details

Part number:

NCSAE17AT

Manufacturer:

NICHIA

File Size:

341.09 KB

Description:

Amber led.
