NCSBE17AT - BLUE LED

Datasheet Summary

Description

Silicone Resin (） Silicone Resin(with diffuser) Au-plated 0.0022g(TYP) K A 4 SOLDERING Reflow Soldering Condition(Lead-free Solder) 1 to 5°C per sec Pre-heat 180 to 200°C 60sec Max Above 220°C 120sec Max 260°CMax 10sec Max Recommended Soldering Pad Pattern 1.4 0.2 NICHIA ST

📥 Download Datasheet

Datasheet preview – NCSBE17AT

Datasheet Details

Part number NCSBE17AT
Manufacturer NICHIA
File Size 380.37 KB
Description BLUE LED
Datasheet download datasheet NCSBE17AT Datasheet
Additional preview pages of the NCSBE17AT datasheet.

📁 Similar Datasheet

  • NCS1002 - Constant Voltage/Constant Current Secondary-Side Controller (ON Semiconductor)
  • NCS1002A - Constant Voltage/Constant Current Secondary-Side Controller (ON Semiconductor)
  • NCS12802 - 12-Channel I2C Programmable Gamma Voltage Reference Generator (ON Semiconductor)
  • NCS12D1205C - DC/DC Converters (Murata)
  • NCS12D1212C - DC/DC Converters (Murata)
  • NCS12D1215C - DC/DC Converters (Murata)
  • NCS12D4805C - DC/DC Converters (Murata)
  • NCS12D4812C - DC/DC Converters (Murata)
  • NCS12D4815C - DC/DC Converters (Murata)
  • NCS12S1203C - DC/DC Converters (Murata)
Other Datasheets by NICHIA

Full PDF Text Transcription

Click to expand full text

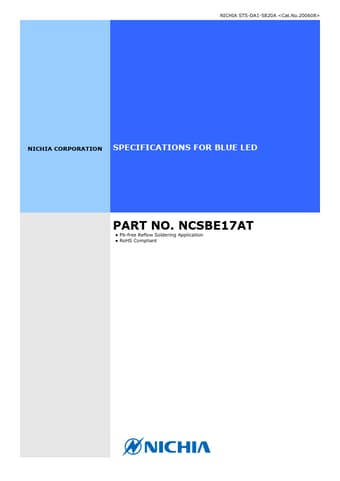

NICHIA STS-DA1-5820A NICHIA CORPORATION SPECIFICATIONS FOR BLUE LED PART NO. NCSBE17AT ● Pb-free Reflow Soldering Application ● RoHS Compliant SPECIFICATIONS NICHIA STS-DA1-5820A (1) Absolute Maximum Ratings Item Symbol Absolute Maximum Rating Forward Current IF 700 Pulse Forward Current IFP 1000 Reverse Voltage VR 5 Power Dissipation PD 2.31 Operating Temperature Topr -40~100 Storage Temperature Tstg -40~100 Junction Temperature TJ 135 * Absolute Maximum Ratings at TC=25°C. * IFP conditions with pulse width ≤10ms and duty cycle ≤10%. Unit mA mA V W °C °C °C (2) Initial Electrical/Optical Characteristics Item Symbol Condition Typ Max Unit Forward Voltage Reverse Current Luminous Flux VF IF=350mA 3.
