NSi8231 Triple-Channel Digital Isolators

13 6.1. INSULATION AND SAFETY RELATED SPECIFICATIONS 13 6.2. SAFETY-LIMITING VALUES 14 6.3. REGULATORY INFORMATION .

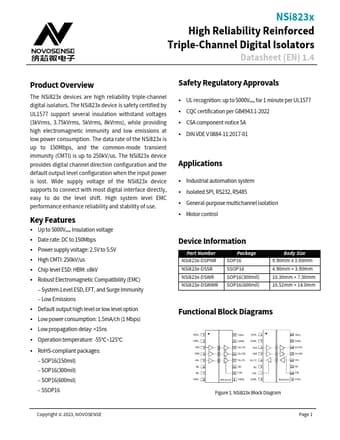

NSi823x High Reliability Reinforced Triple-Channel Digital Isolators Datasheet (EN) 1.4 Product Overview The NSi823x devices are high reliability triple-channel digital isolators. The NSi823x device is safety certified by UL1577 support several insulation withstand voltages (3kVrms, 3.75kVrms, 5kVrms, 8kVrms), while providing high electromagnetic immunity and low emissions at low power consumption. The data rate of the NSi823x is up to 150Mbps, and the common-mode transient immunity (CMTI) is u.

NSi8231 Features

* Up to 5000Vrms Insulation voltage

* Date rate: DC to 150Mbps

* Power supply voltage: 2.5V to 5.5V

* High CMTI: 250kV/us

* Chip level ESD: HBM: ±8kV

* Robust Electromagnetic Compatibility (EMC)

* System-Level ESD, EFT, and Surge Immunity

* Low Emissions

NSi8230-NOVOSENSE.pdf

NSi8231 Datasheet Preview — This datasheet PDF includes multiple part numbers: NSi8231, NSi8230. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

NSi8231, NSi8230

Manufacturer:

NOVOSENSE

File Size:

3.22 MB

Description:

Triple-channel digital isolators.

Note:

This datasheet PDF includes multiple part numbers: NSi8231, NSi8230.
Please refer to the document for exact specifications by model.
