NTE7050 - Integrated Circuit Phase Lock Loop (PLL) Stereo Decoder

NTE Electronics

📥 Download Datasheet

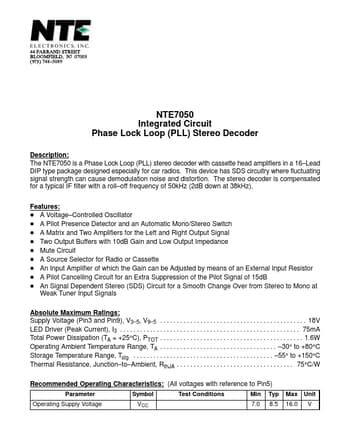

NTE7050 Datasheet Preview — Preview of NTE7050 PDF

Datasheet Details

Part number: NTE7050
Manufacturer: NTE Electronics
File Size: 36.50 KB
Datasheet: NTE7050_NTEElectronics.pdf
Description: Integrated Circuit Phase Lock Loop (PLL) Stereo Decoder

NTE7050 Product details

Description

The NTE7050 is a Phase Lock Loop (PLL) stereo decoder with cassette head amplifiers in a 16 Lead DIP type package designed especially for car radios. off frequency of 50kHz (2dB down at 38kHz).

Features

D A Voltage.
Controlled Oscillator D A Pilot Presence Detector and an Automatic Mono/Stereo Switch D A Matrix and Two Amplifiers for the Left and Right Output Signal D Two Output Buffers with 10dB Gain and Low Output Impedance D Mute Circuit D A Source Selector for Radio or Cassette D An Input Amplifier of which the Gain can be Adjusted by means of an External Input Resistor D A Pilot Cancelling Circuit for an Extra Suppression of the Pilot Signal of 15dB D An Signal Dependent Stereo (SD.
