NTE7053 - Integrated Circuit 22W Bridge-Stereo Amplifier for Car Radio

NTE Electronics

📥 Download Datasheet

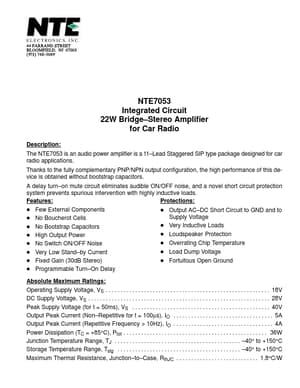

NTE7053 Datasheet Preview — Preview of NTE7053 PDF

Datasheet Details

Part number: NTE7053
Manufacturer: NTE Electronics
File Size: 24.47 KB
Datasheet: NTE7053_NTEElectronics.pdf
Description: Integrated Circuit 22W Bridge-Stereo Amplifier for Car Radio

NTE7053 Product details

Description

The NTE7053 is an audio power amplifier is a 11 Lead Staggered SIP type package designed for car radio applications. on mute circuit eliminates audible ON/OFF noise, and a novel short circuit protection system prevents spurious intervention with highly inductive loads.

Features

Protections: D D D D D D D D Few External Components No Boucherot Cells No Bootstrap Capacitors High Output Power No Switch ON/OFF Noise Very Low Stand.
by Current Fixed Gain (30dB Stereo) Programmable Turn.
On Delay D Output AC.
DC Short Circuit to GND and to Supply Voltage D Very Inductive Loads D Loudspeaker Protection D Overrating Chip Temperature D Load Dump Voltage D Fortuitous Open Ground Absolute Maximum Ratings: Operating Supply Voltage, VS.
