NTE7072 - Integrated Circuit Dual DC Controlled Potentiometer Circuit

NTE Electronics

The NTE7072 by NTE Electronics is a Integrated Circuit Dual DC Controlled Potentiometer Circuit. Below is the official datasheet preview.

Datasheet Details

Part number	NTE7072
Manufacturer	NTE Electronics
File Size	22.73 KB
Description	Integrated Circuit Dual DC Controlled Potentiometer Circuit
Datasheet	NTE7072_NTEElectronics.pdf

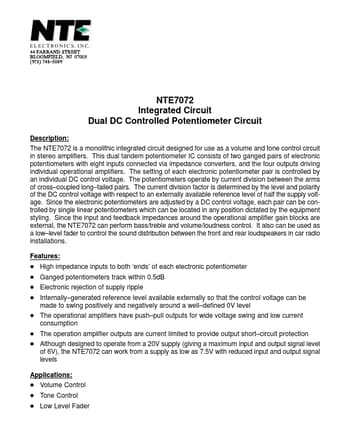

Additional preview pages of the NTE7072 datasheet.

The NTE7072 is a monolithic integrated circuit designed for use as a volume and tone control circuit in stereo amplifiers.

D High impedance inputs to both ‘ends’ of each electronic potentiometer D Ganged potentiometers track within 0.5dB D Electronic rejection of supply ripple D Internally.
generated reference level available externally so that the control voltage can be made to swing positively and negatively around a well.
defined 0V level D The operational amplifiers have push.
pull outputs for wide voltage swing and low current consumption D The operation amplifier outputs are current limit.
