NTE7074 Datasheet - NTE Electronics

NTE7074 Integrated Circuit Module / 3 Output Positive Voltage Regulator for VCR

NTE7074 Integrated Circuit Module, 3 Output Positive Voltage Regulator for VCR Absolute Maximum Ratings: (TA = +25°C unless otherwise specified) Maximum DC Input Voltage, VIN (DC) Max . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30V Maximum Average Output Current, IO Max VO1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.0A VO2 . . . . . . . . . . . . . . . .

NTE7074_NTEElectronics.pdf

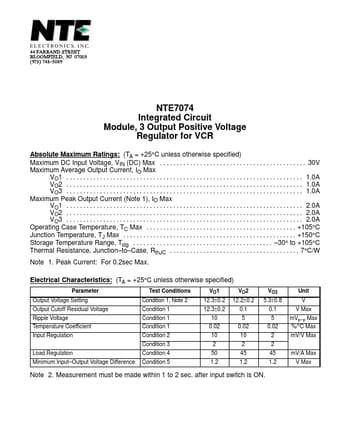

Preview of NTE7074 PDF
NTE7074 Datasheet Preview Page 2

Datasheet Details

Part number:

NTE7074

Manufacturer:

NTE Electronics

File Size:

18.98 KB

Description:

Integrated circuit module / 3 output positive voltage regulator for vcr.
