NTE15 - Silicon NPN Transistor

NTE15 Description

NTE15 Silicon NPN Transistor VHF Amp, Mixer, Oscillator, UHF OSC .

NTE15 Applications

* D VHF Mixers and Oscillators D UHF Oscillators Absolute Maximum Ratings: (TA = +25°C unless otherwise specified) Collector
* Base Voltage, VCBO
* 30V Collector
* Emitter Voltage, VCEO

📥 Download Datasheet

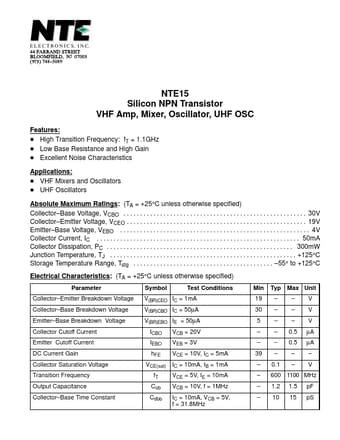

Preview of NTE15 PDF
datasheet Preview Page 2

Datasheet Details

Part number
NTE15
Manufacturer
NTE
File Size
20.23 KB
Datasheet
NTE15_NTEElectronics.pdf
Description
Silicon NPN Transistor
