NTE61 - Silicon Complementary Transistors

This page provides the datasheet information for the NTE61, a member of the NTE60 Silicon Complementary Transistors family.

Datasheet Summary

Description

The NTE60 (NPN) and NTE61 (PNP) are complementary silicon power transistors in a TO3 type package designed for high power audio, disk head positioners, and other linear applications.

Features

  • D High Safe Operating Area: 250W @ 50V D For Low Distortion Complementary Designs D High DC Current Gain: hFE = 25 Min @ IC = 5A Absolute Maximum Ratings: Collector.
  • Emitter Voltage, VCEO(sus).
  • . . . . 140V Collector.
  • Base Voltage, VCBO.
  • . . . . 140V Emitter.
  • Base Voltage, VEBO.

📥 Download Datasheet

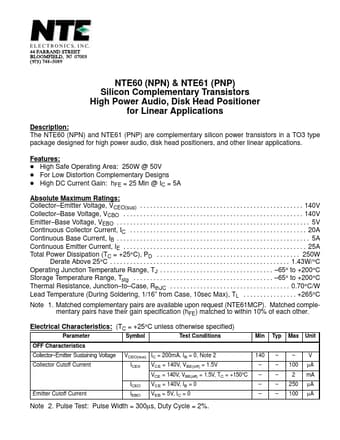

Datasheet preview – NTE61

Datasheet Details

Part number NTE61
Manufacturer NTE
File Size 24.10 KB
Description Silicon Complementary Transistors
Datasheet download datasheet NTE61 Datasheet
Additional preview pages of the NTE61 datasheet.

📁 Similar Datasheet

  • NTE610 - Voltage Variable Capacitance Diode (Tuning Diode) (NTE Electronics)
  • NTE6102 - Industrial Rectifier / 550A (NTE Electronics)
  • NTE6109 - Industrial Rectifier / 550A (NTE Electronics)
  • NTE6110 - Industrial Rectifier / 500 Amp (NTE Electronics)
  • NTE6111 - Silicon Power Rectifier Diode / 1100 Amp (NTE Electronics)
  • NTE6112 - Industrial Rectifier / 500 Amp (NTE Electronics)
  • NTE6113 - Industrial Rectifier / 1200 Amp (NTE Electronics)
  • NTE6114 - Silicon Power Rectifier Diode / 1100 Amp (NTE Electronics)
  • NTE6115 - Industrial Rectifier / 1200 Amp (NTE Electronics)
  • NTE6116 - Industrial Rectifier / 2200 Amp (NTE Electronics)
Other Datasheets by NTE
  • NTE6154 - Silicon Industrial Rectifier
  • NTE6155 - Silicon Industrial Rectifier
  • NTE6156 - Silicon Industrial Rectifier
  • NTE6157 - Silicon Industrial Rectifier
  • NTE6158 - Silicon Industrial Rectifier
  • NTE6159 - Silicon Industrial Rectifier
  • NTE6162 - Silicon Industrial Rectifier
  • NTE6163 - Silicon Industrial Rectifier

Full PDF Text Transcription

Click to expand full text
NTE60 (NPN) & NTE61 (PNP) Silicon Complementary Transistors High Power Audio, Disk Head Positioner for Linear Applications Description: The NTE60 (NPN) and NTE61 (PNP) are complementary silicon power transistors in a TO3 type package designed for high power audio, disk head positioners, and other linear applications. Features: D High Safe Operating Area: 250W @ 50V D For Low Distortion Complementary Designs D High DC Current Gain: hFE = 25 Min @ IC = 5A Absolute Maximum Ratings: Collector–Emitter Voltage, VCEO(sus) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140V Collector–Base Voltage, VCBO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140V Emitter–Base Voltage, VEBO . .
