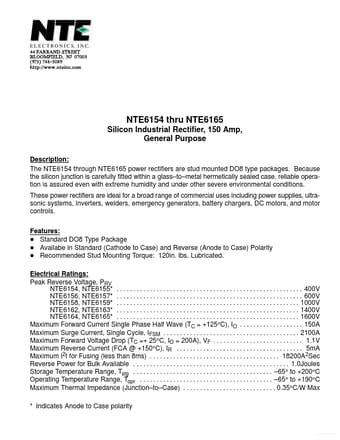

Description
The NTE6154 through NTE6165 power rectifiers are stud mounted DO8 type packages.
to
metal hermetically sealed case, reliable operation is assured even with extreme humidity and under other severe environmental conditions.
Features
- D Standard DO8 Type Package D Availabe in Standard (Cathode to Case) and Reverse (Anode to Case) Polarity D Recommended Stud Mounting Torque: 120in. lbs. Lubricated. Electrical Ratings: Peak Reverse Voltage, PRV NTE6154, NTE6155.
- . 400V NTE6156, NTE6157.
- . 600V NTE6158, NTE6159.
