NTE6156 - Silicon Industrial Rectifier

This page provides the datasheet information for the NTE6156, a member of the NTE6154 Silicon Industrial Rectifier family.

Datasheet Summary

Description

The NTE6154 through NTE6165 power rectifiers are stud mounted DO8 type packages.

to metal hermetically sealed case, reliable operation is assured even with extreme humidity and under other severe environmental condition

Features

  • D Standard DO8 Type Package D Availabe in Standard (Cathode to Case) and Reverse (Anode to Case) Polarity D Recommended Stud Mounting Torque: 120in. lbs. Lubricated. Electrical Ratings: Peak Reverse Voltage, PRV NTE6154, NTE6155.
  • . 400V NTE6156, NTE6157.
  • . 600V NTE6158, NTE6159.

📥 Download Datasheet

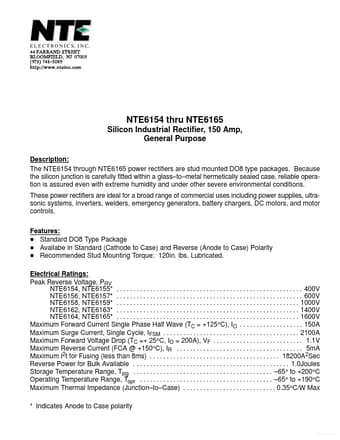

Datasheet preview – NTE6156

Datasheet Details

Part number NTE6156
Manufacturer NTE
File Size 37.51 KB
Description Silicon Industrial Rectifier
Datasheet download datasheet NTE6156 Datasheet
Additional preview pages of the NTE6156 datasheet.
