74LVC1G99

Ultra-configurable multiple function gate

74LVC1G99 Features

* Wide supply voltage range from 1.65 V to 5.5 V 5 V tolerant inputs for interfacing with 5 V logic High noise immunity Complies with JEDEC standard: ‹ JESD8-7 (1.65 V to 1.95 V) ‹ JESD8-5 (2.3 V to 2.7 V) ‹ JESD8-B/JESD36 (2.7 V to 3.6 V) ESD protection: ‹ HBM

74LVC1G99 General Description

The 74LVC1G99 provides a low voltage, ultra-configurable, multiple function gate with 3-state output. The device can be configured as one of several logic functions including, AND, OR, NAND, NOR, XOR, XNOR, inverter, buffer and MUX. No external components are required to configure the device as all .

74LVC1G99 Datasheet (279.59 KB)

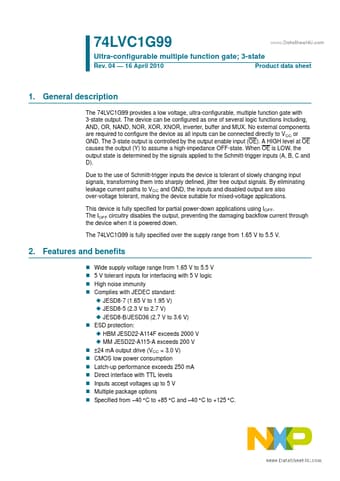

Preview of 74LVC1G99 PDF

Datasheet Details

Part number:

74LVC1G99

Manufacturer:

NXP ↗ Semiconductors

File Size:

279.59 KB

Description:

Ultra-configurable multiple function gate.
74LVC1G99 Ultra-configurable multiple function gate; 3-state Rev. 04

* 16 April 2010 www.DataSheet4U.com Product data sheet 1. General desc.
