ADC1412D065, Dual 14-bit ADC

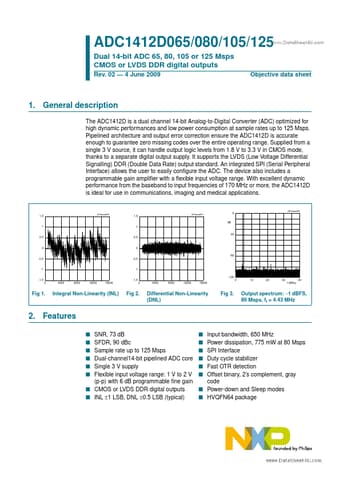

ADC1412D065/080/105/125 Dual 14-bit ADC 65, 80, 105 or 125 Msps CMOS or LVDS DDR digital outputs Rev.02 * 4 June 2009 www.DataSheet4U.com O.
The ADC1412D is a dual channel 14-bit Analog-to-Digital Converter (ADC) optimized for high dynamic performances and low power consumption at sample ra.

datasheet Preview Page 1 from Datasheet4u.com

ADC1412D065_NXPSemiconductors.pdf

ADC1412D065 Datasheet Preview — Preview of ADC1412D065 PDF

Datasheet Details

Part number:

ADC1412D065

Manufacturer:

NXP ↗ Semiconductors

File Size:

337.27 KB

Description:

Dual 14-bit ADC

Features

* I I I I I I SNR, 73 dB SFDR, 90 dBc Sample rate up to 125 Msps Dual-channel14-bit pipelined ADC core Single 3 V supply Flexible input voltage range: 1 V to 2 V (p-p) with 6 dB programmable ﬁne gain I CMOS or LVDS DDR digital outputs I INL ±1 LSB, DNL ±0.5 LSB (typical) I I I I I I Input bandwidth, 6

Applications

* 1.5 005aaa040 1.5 005aaa041 0 dB 005aaa042 1 1 -40 0.5 0.5 0 0 -80 -0.5 -0.5 -1 -1 -120 -1.5 0 4000 8000 12000 16000 -1.5 0 4000 8000 12000 16000 0 10 20 30 f (MHz) 40 Fig 1. Integral Non-Linearity (INL) Fig 2. Differential Non-Linearity (DNL) Fig 3. Output spectrum:
